Deadrise Hull Shape Cross-section

Rhino Grasshopper

Download: deadrise_V1_2015Jul6b.gh (V1)

Version 1:

The main difference between V1 and V2 is the method used to shape the curve. One effect of this difference is that V1 allows concave curves in the cross-section (Fig. V1.3) while V2 does not.

• Version 1
• Version 2

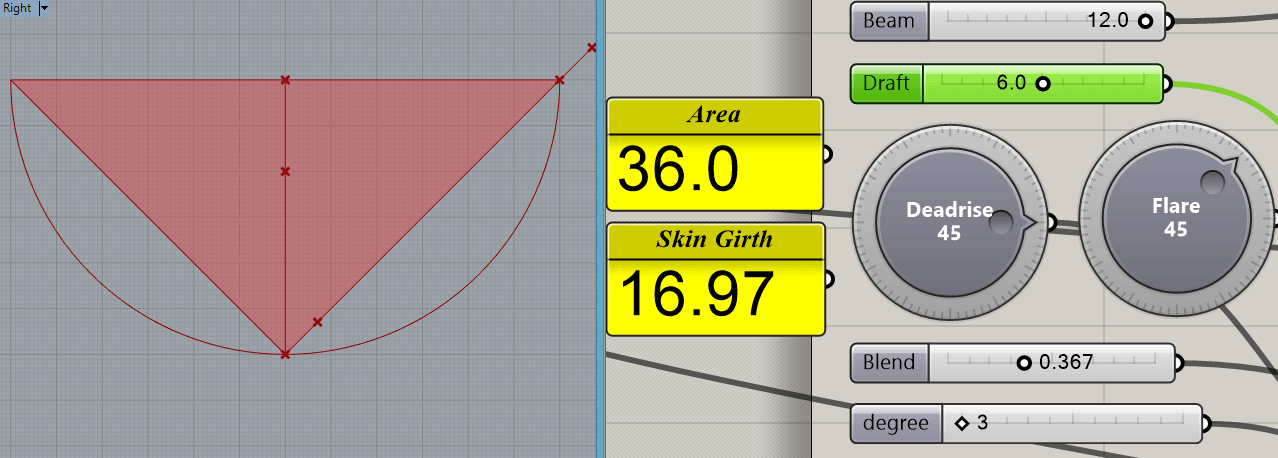

Fig. V1.1

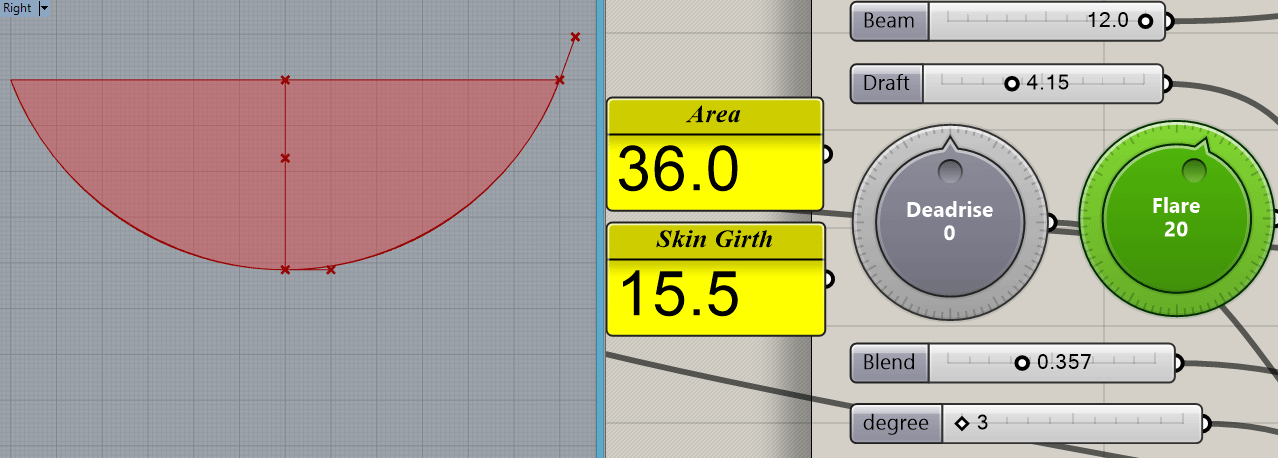

Fig. V1.2

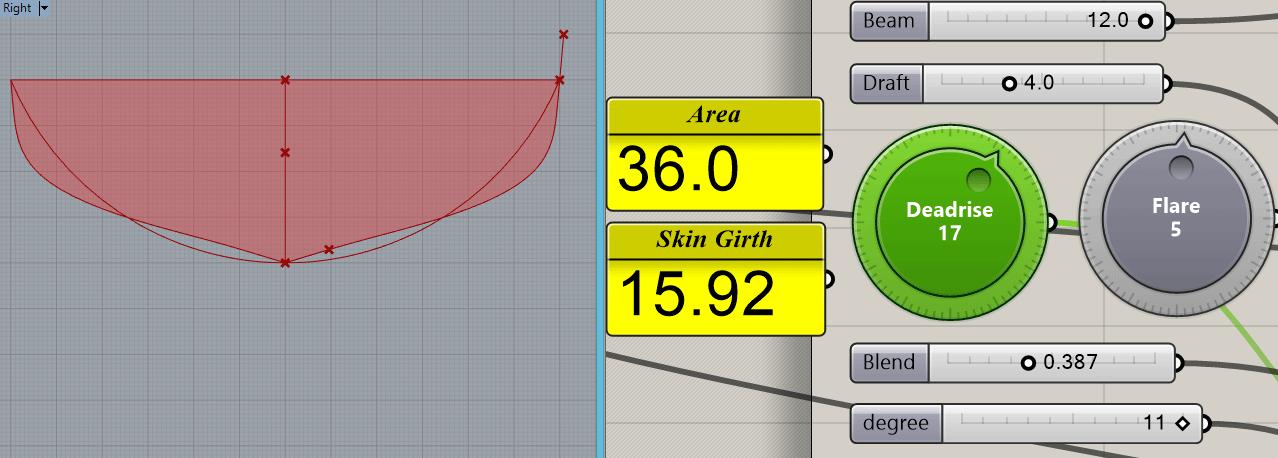

Fig. V1.3

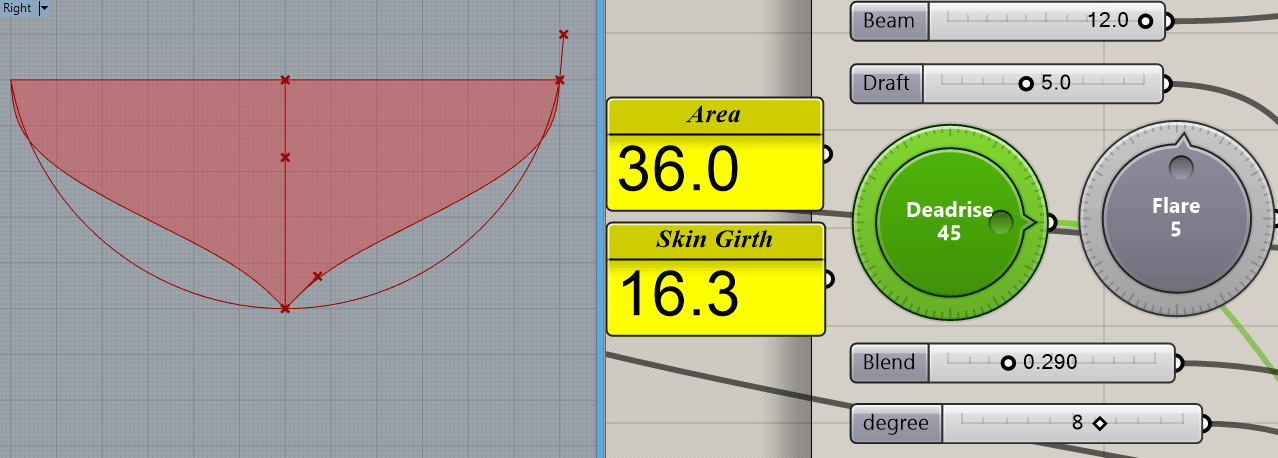

Fig. V1.4

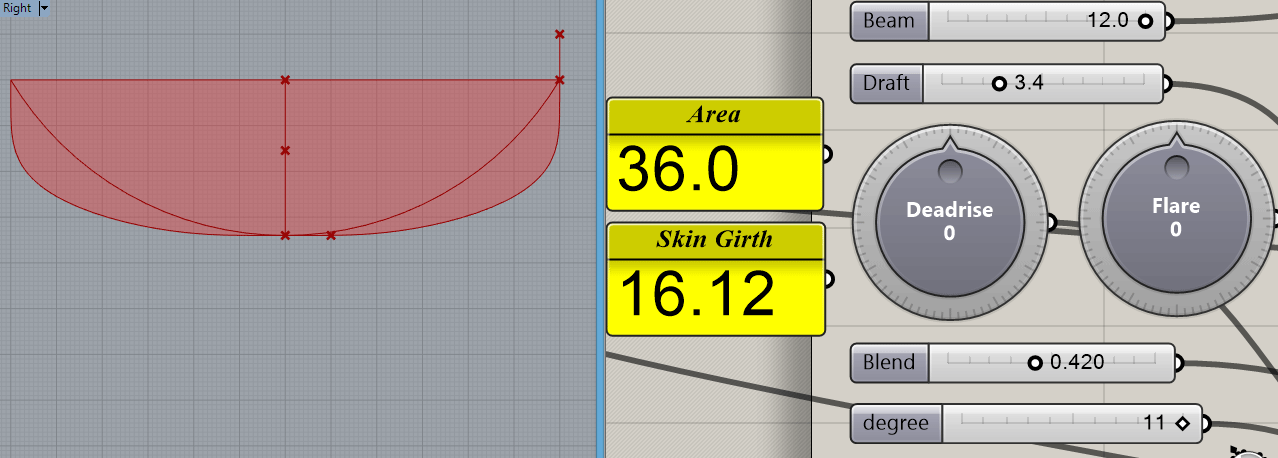

Fig. V1.5
