Proa sketches in Rhino

coach/pilot roof shapes, Mar 26, 2014

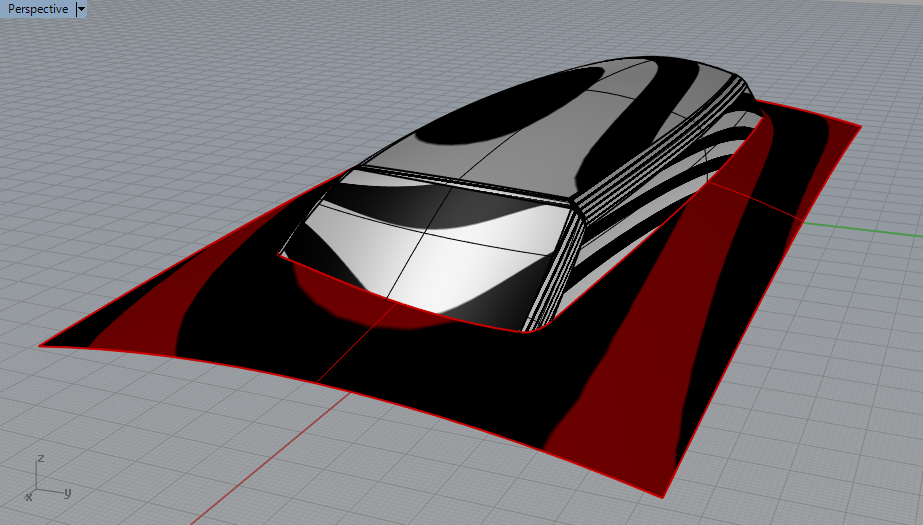

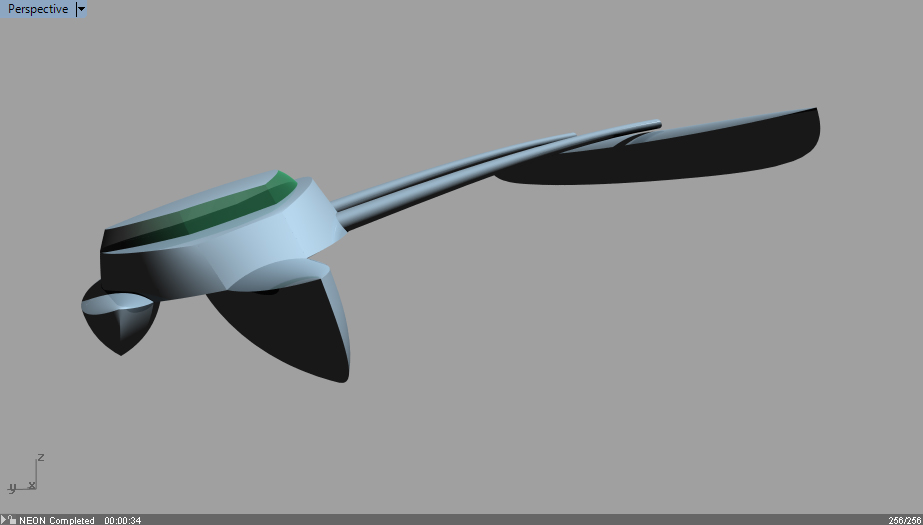

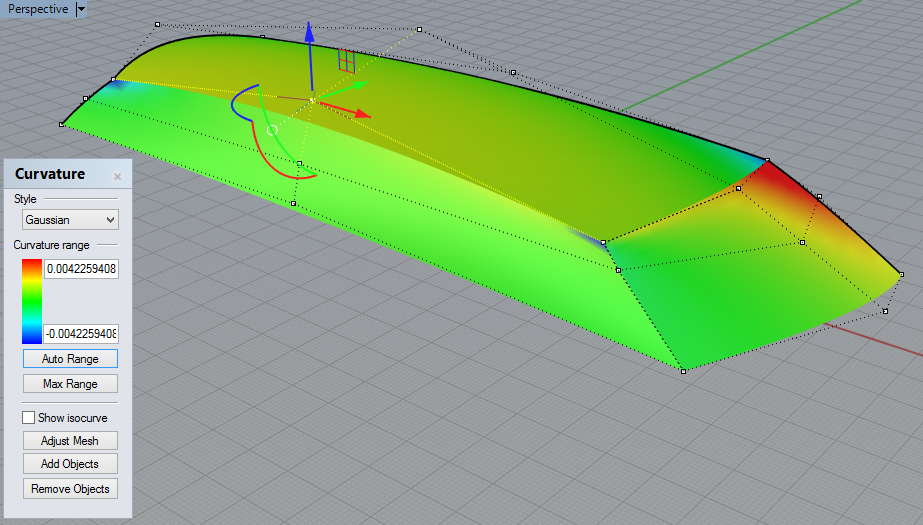

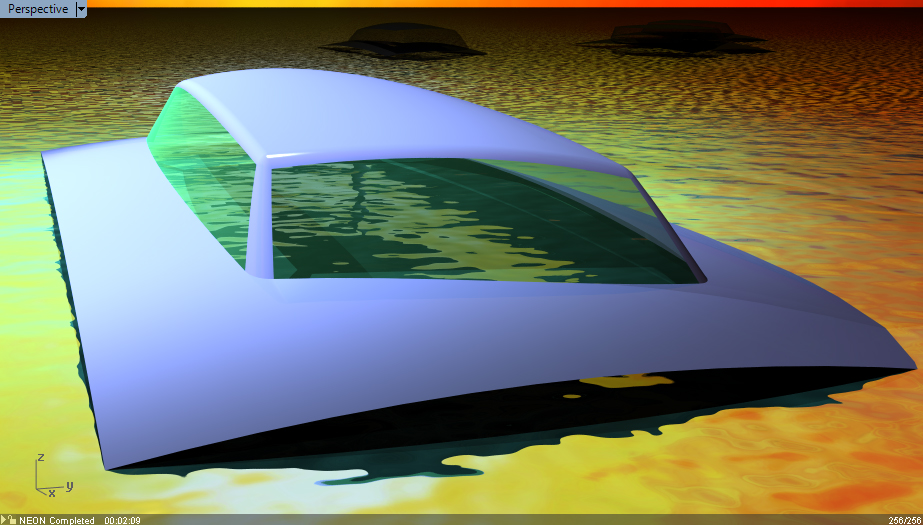

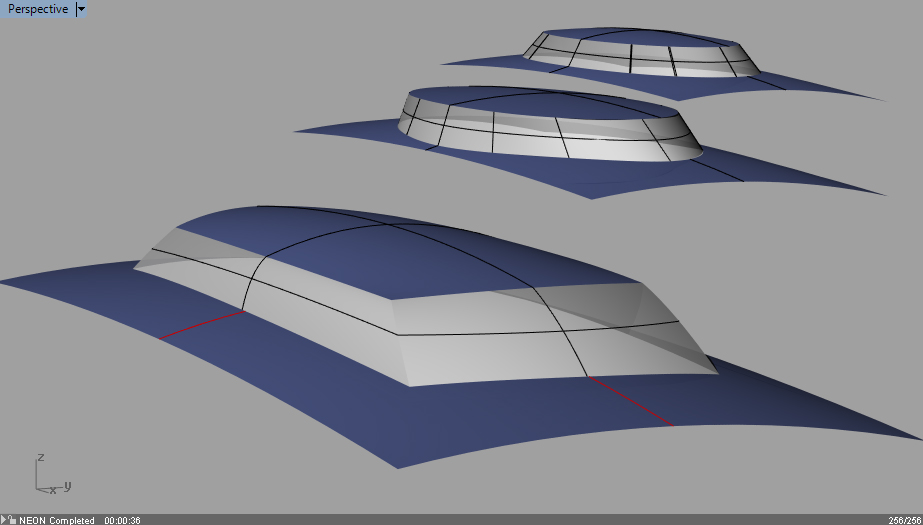

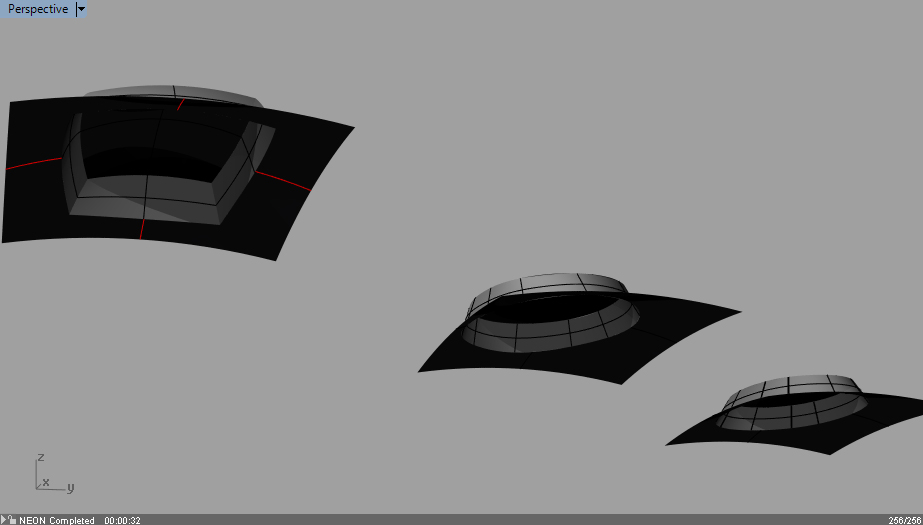

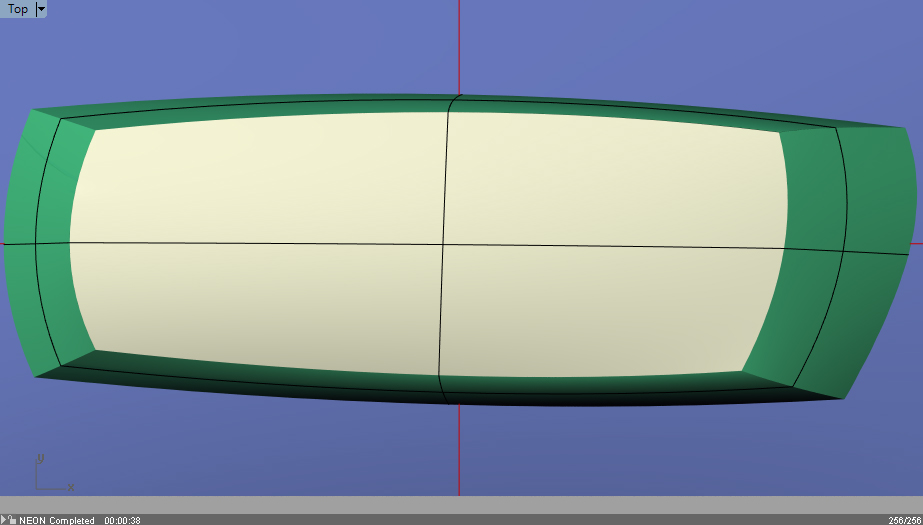

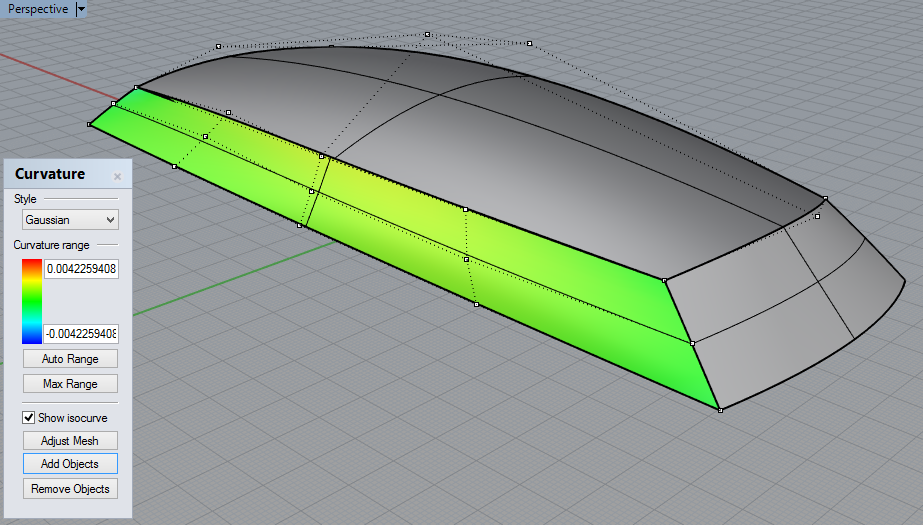

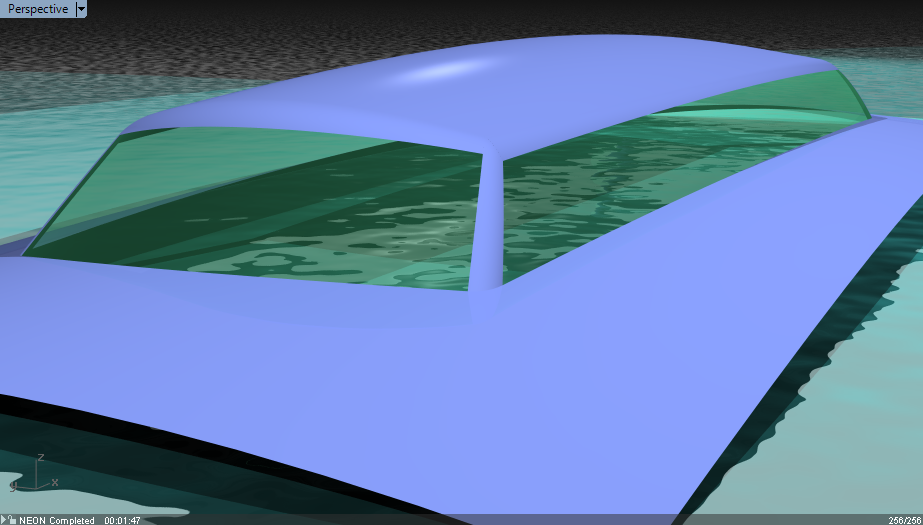

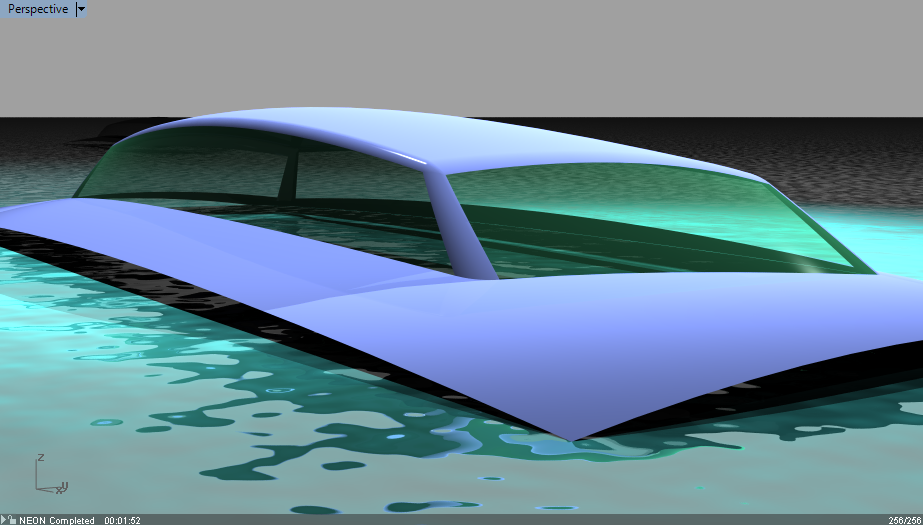

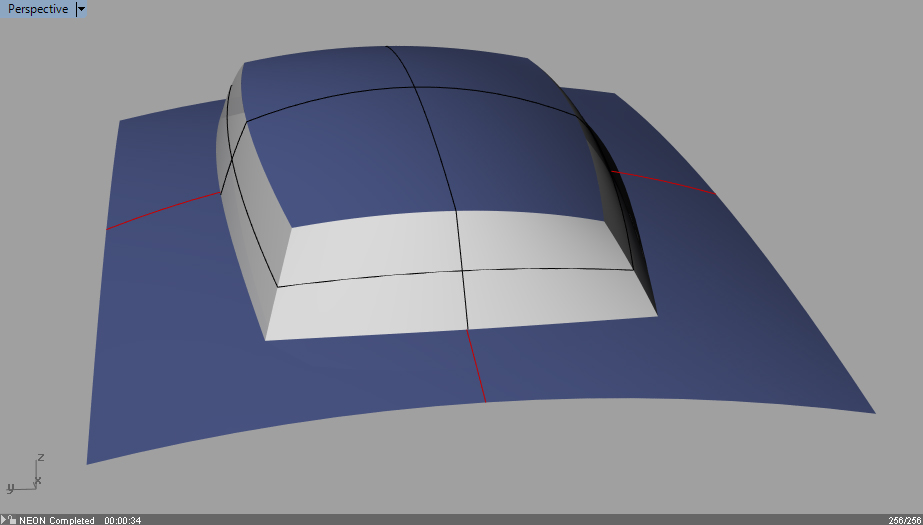

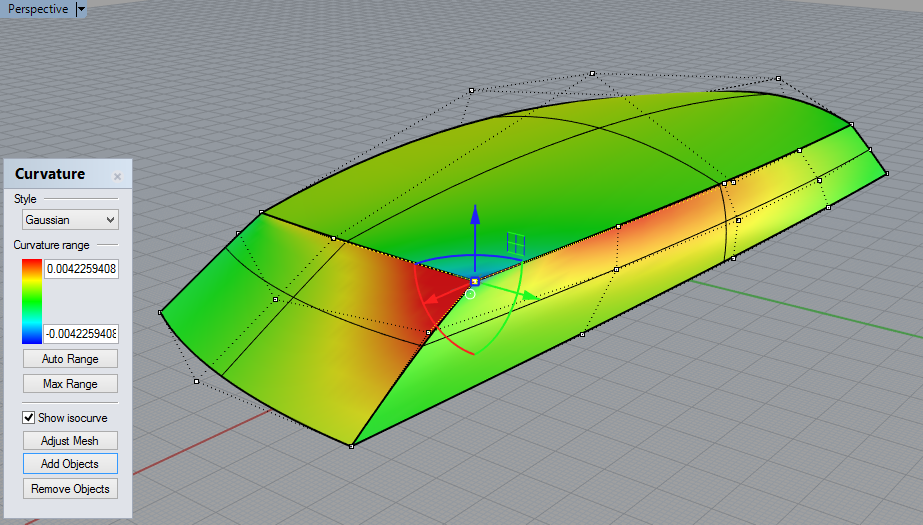

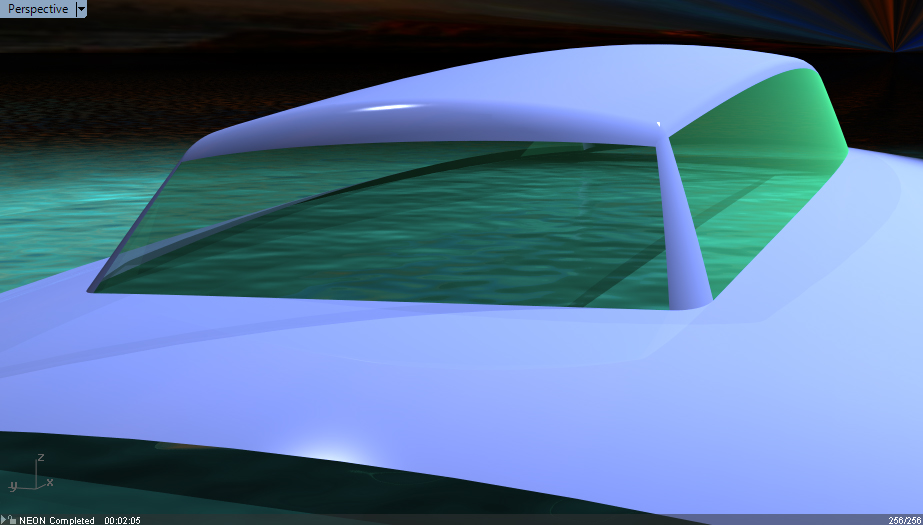

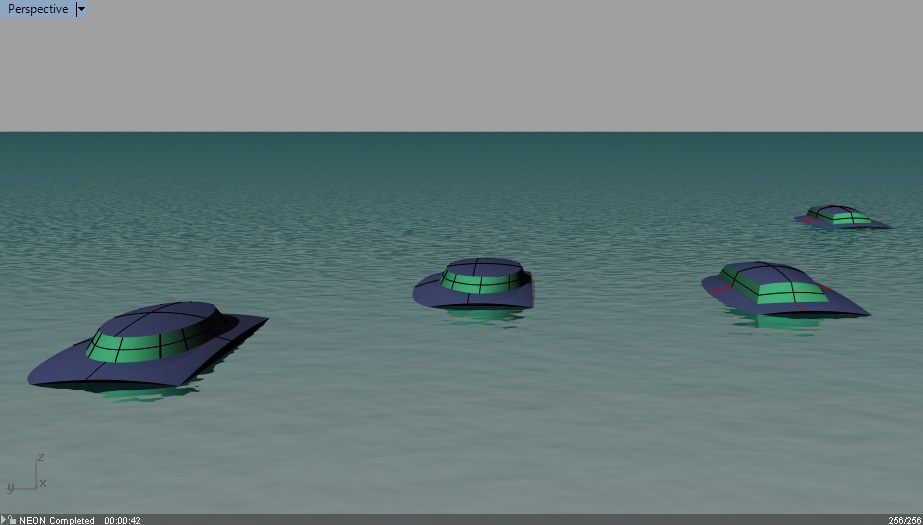

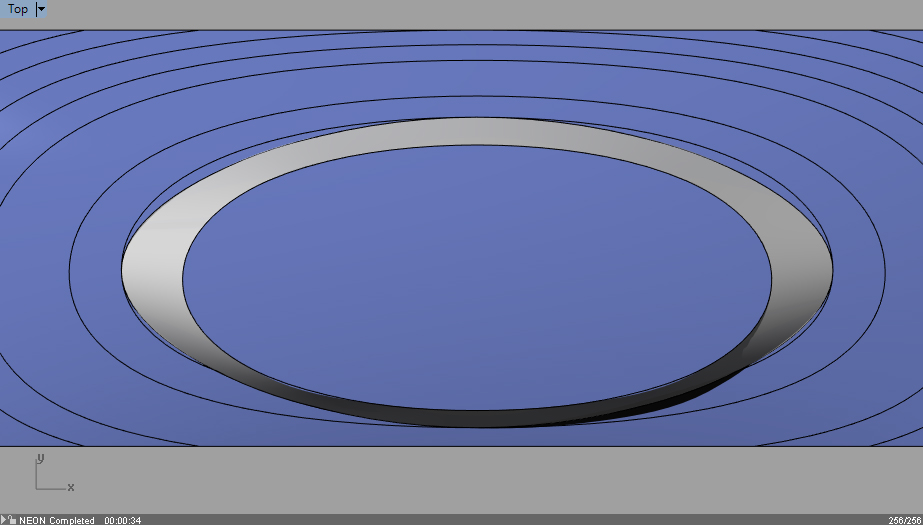

Coach/pilot roof shapes using control points of related surfaces, inspired by the T-Splines plugin, which was also used for some experiments.


October/December, 2021

Spring, 2018

January, 2018

Spring Equinox, March, 2016

Winter Solstice, December, 2015

Grasshopper Salon/Coach, July, 2015

Leeward Salon, Single Entrance, August 27, 2014

Coach Dimensions... August, 2014

Grasshopper hulls, Apr 16, 2014

interior - below beam... Apr 5, 2014

wide coach roof... Mar 31, 2014

safety ama musings... Mar 24, 2014

old and new... Mar 16, 2014

Model Notes history...

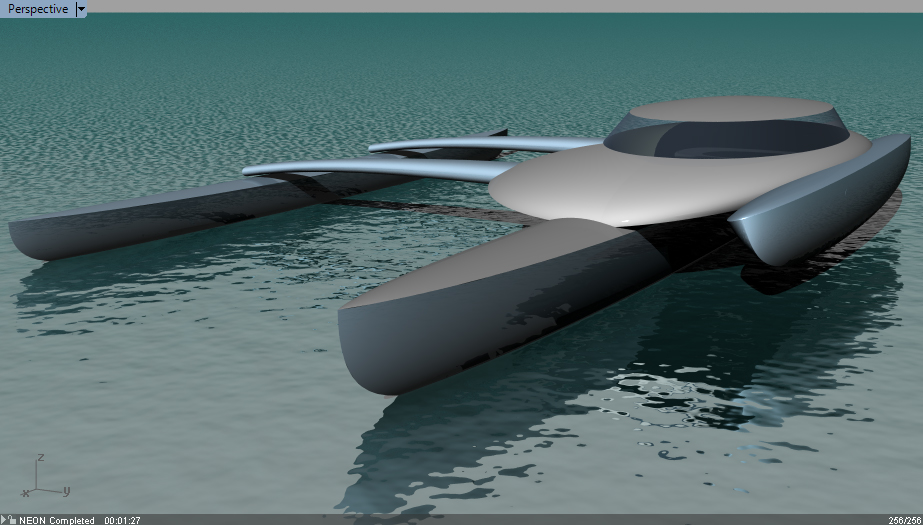

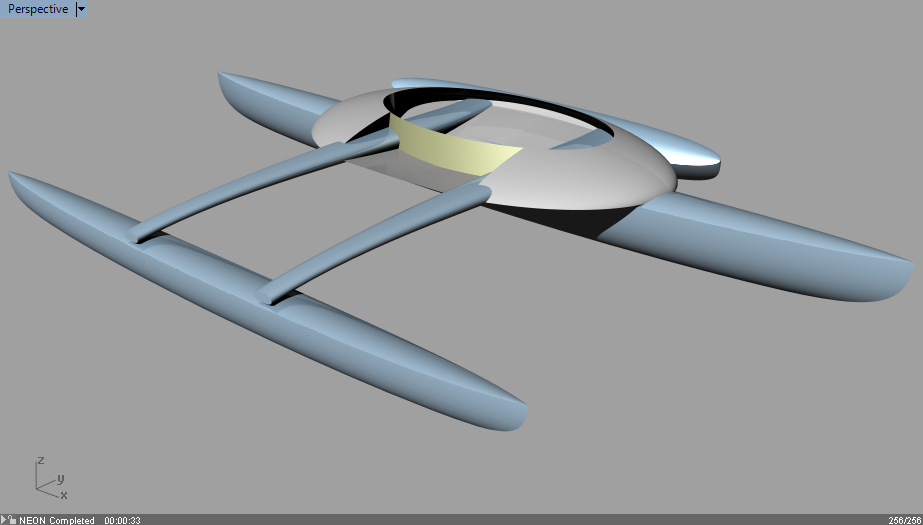

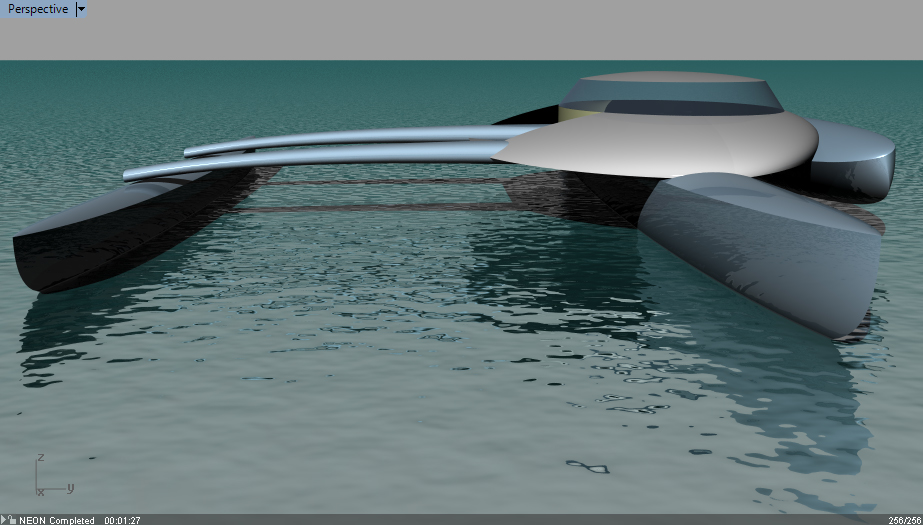

These sketches of a 70' Pacific proa were done in the process of learning Rhino CAD. Nothing is final. The basic parameters of the vessel were defined decades ago, the "saftey ama" to leeward is new, and there is still a lot of room for style (like cars!).

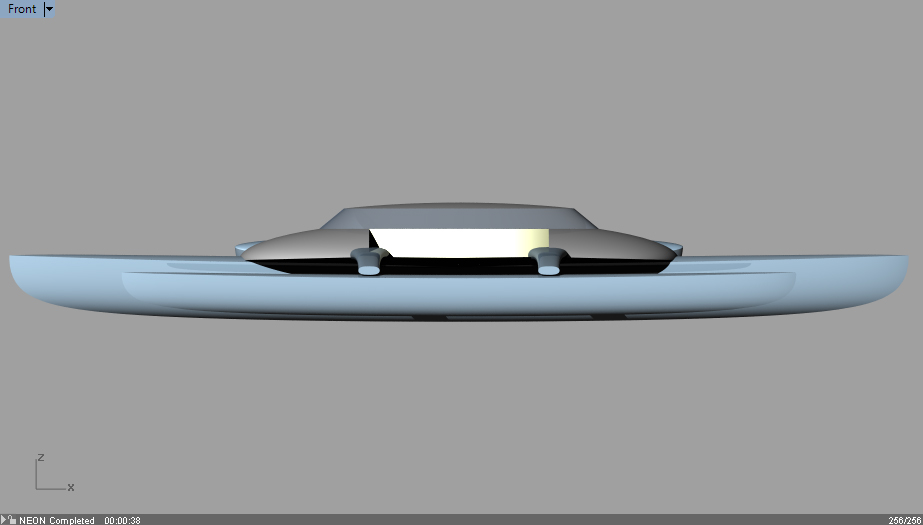

This safety ama is one foot off the water at rest, is engaged at 10 degrees heel and gets max. displacement (55% of total) at 20 degrees heel angle. At this size, that extra volume is useful for accommodations.
