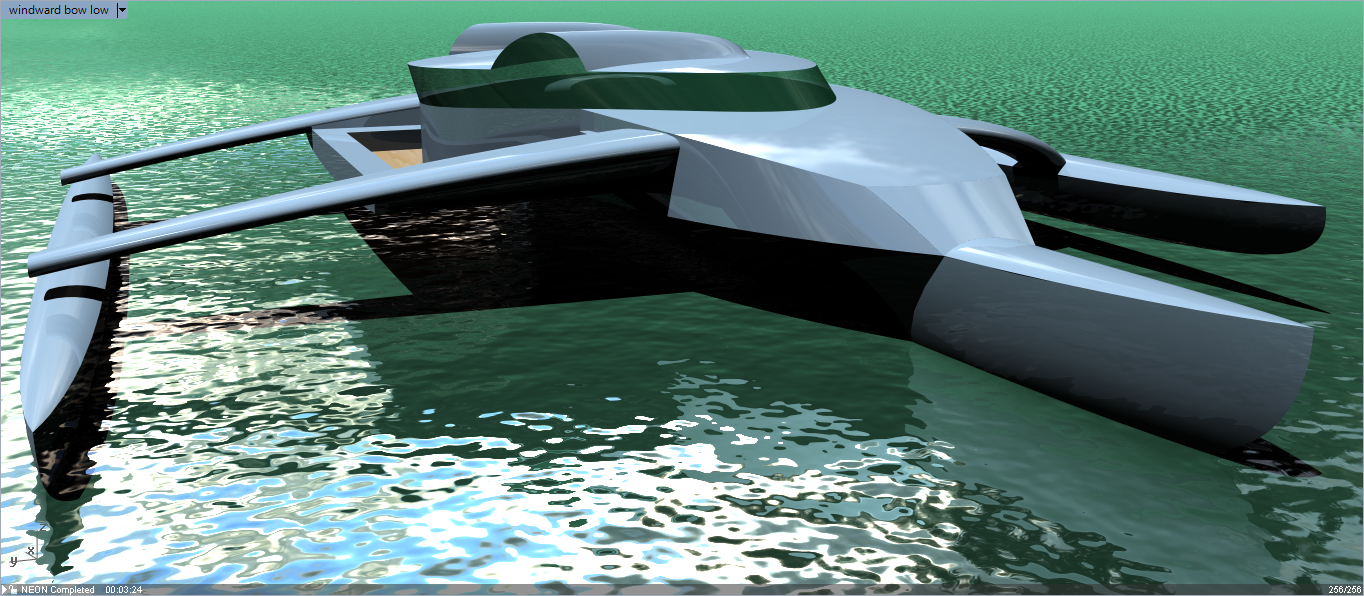

lower roof, open pilot to windward, single entrance inboard (to be revealed...)
45' version, scaled by 0.643 (45/70) in 'X' and 'Y', leaving 'Z' (height) alone
Proa sketches in Rhino

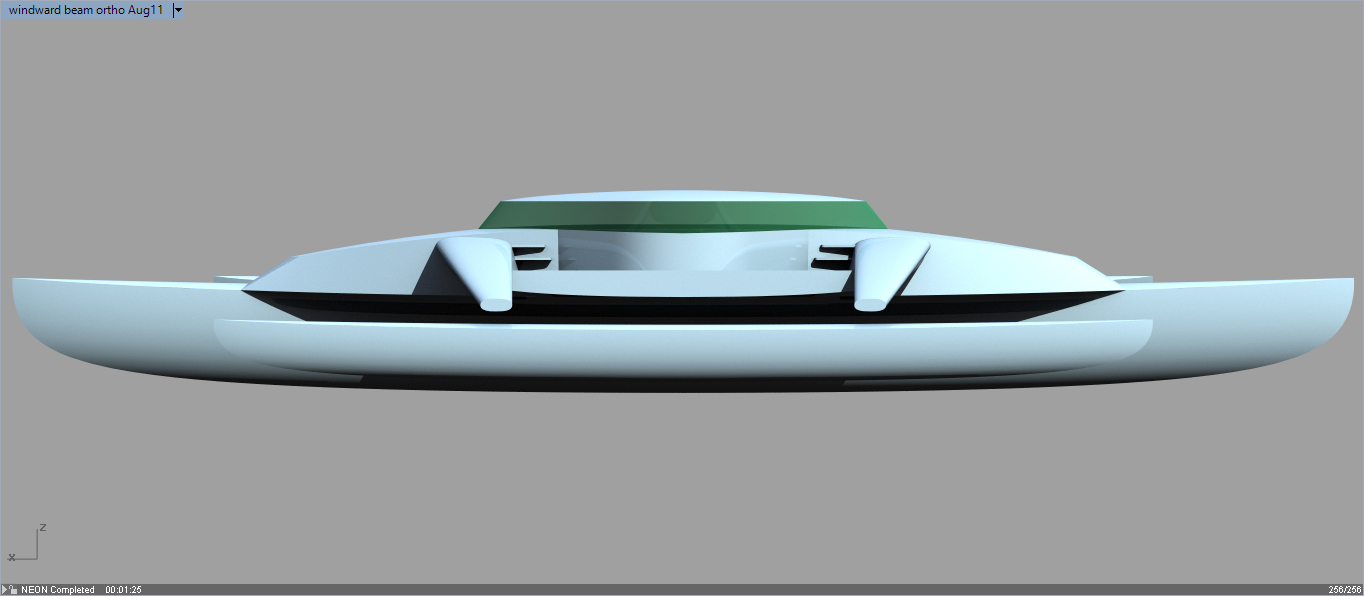

Coach Dimensions, August, 2014

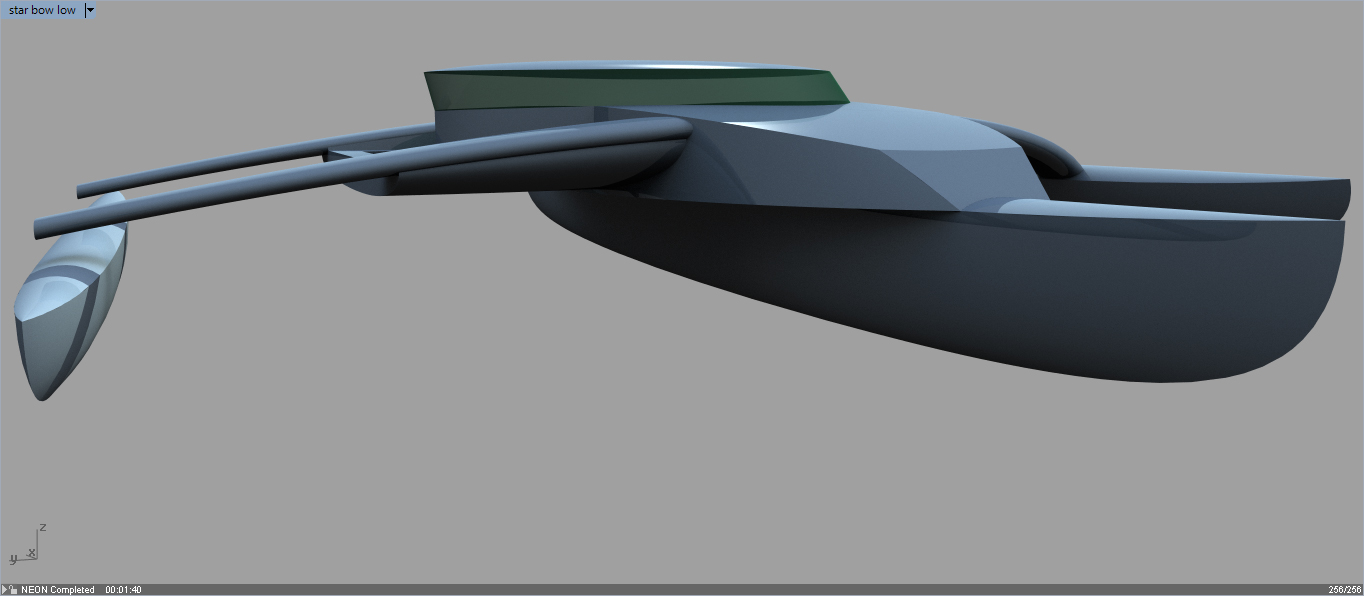

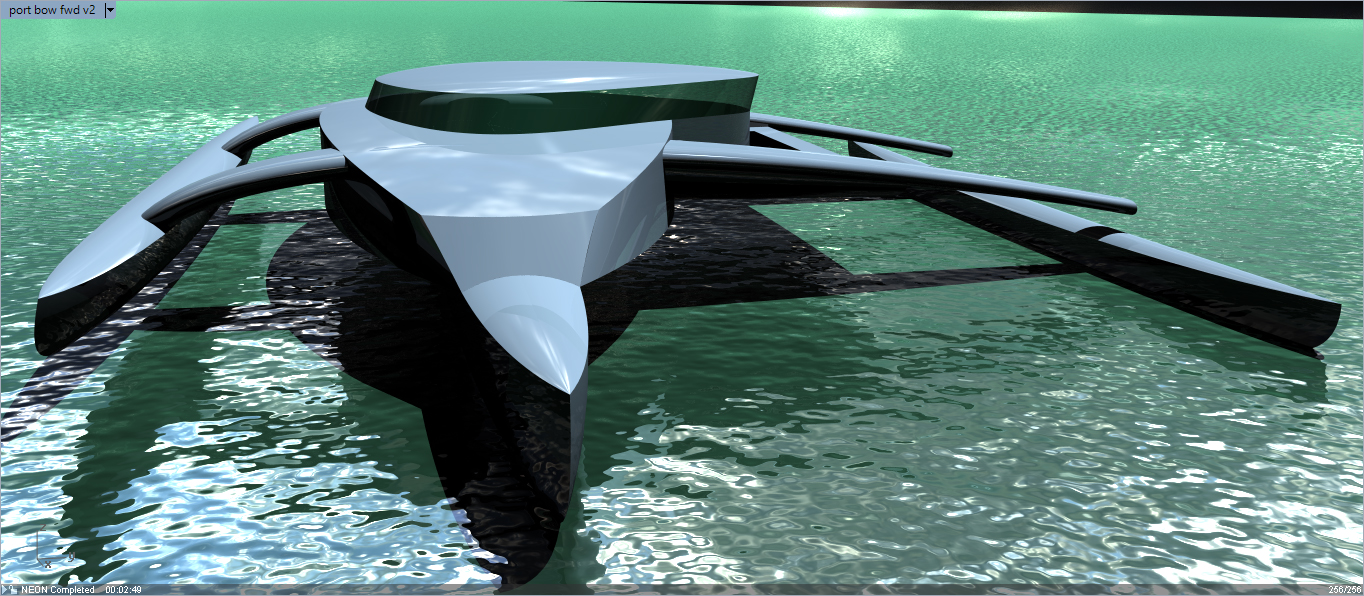

Ignored hull shapes completely to explore precise shape and dimensions of "coach roof" area, raised pilot roof and window area, beams and safety ama.
Winter Solstice, December, 2015
Grasshopper Salon/Coach, July, 2015

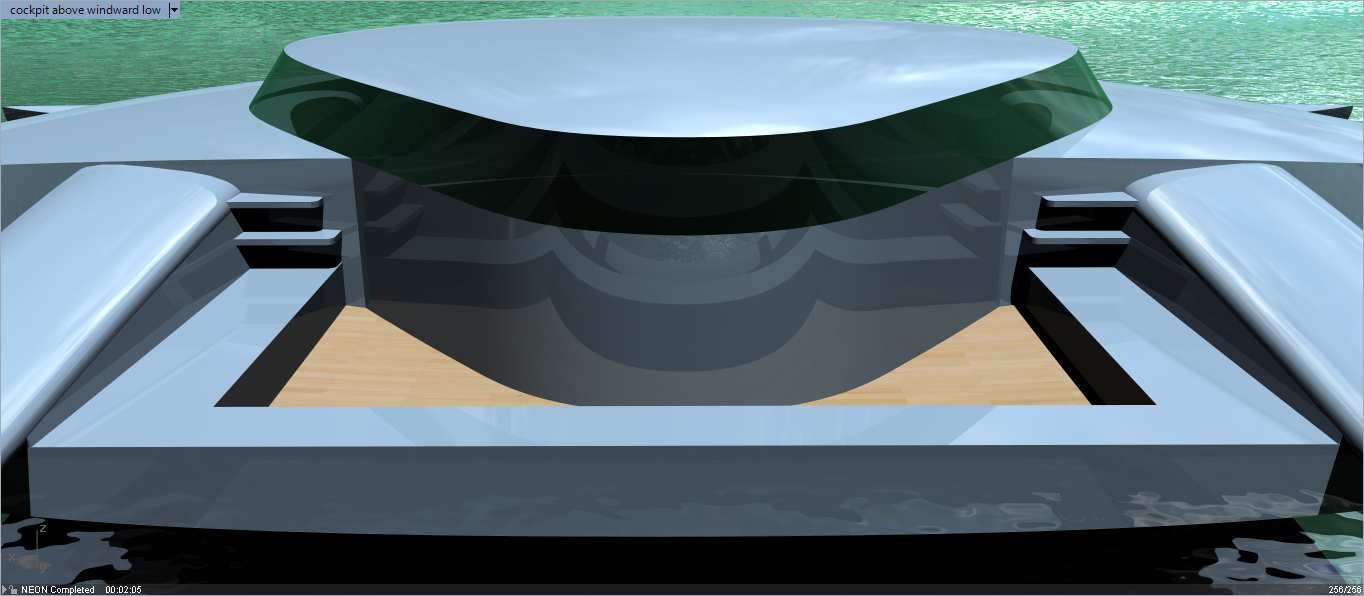

Leeward Salon, Single Entrance, August 27, 2014
Grasshopper hulls, Apr 16, 2014
interior - below beam... Apr 5, 2014
wide coach roof... Mar 31, 2014
coach/pilot roof shapes... Mar 26, 2014
safety ama musings... Mar 24, 2014
Model Notes history...

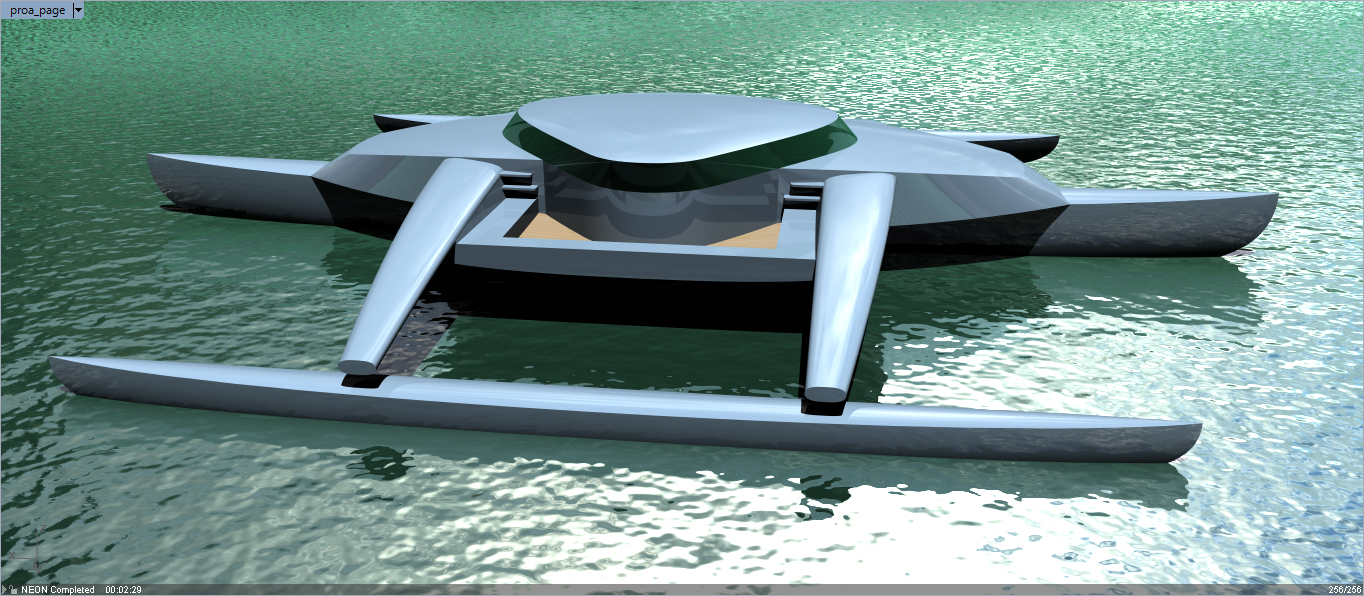

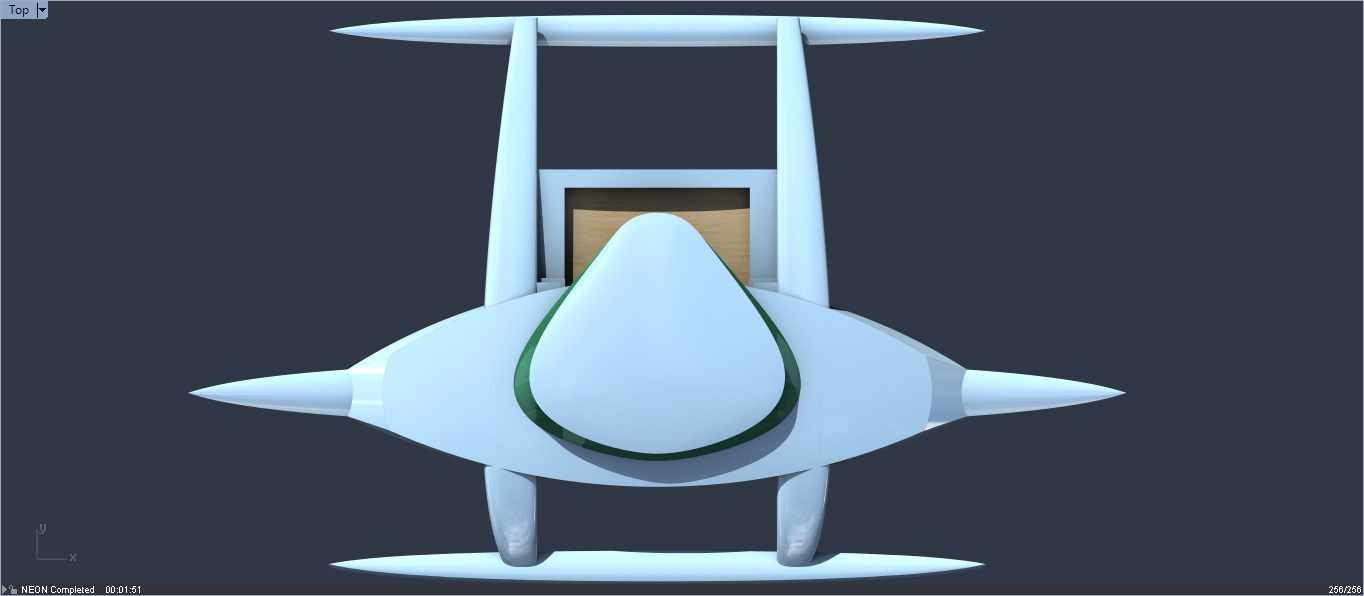

These sketches of a 70' Pacific proa were done in the process of learning Rhino CAD. Nothing is final. The basic parameters of the vessel were defined decades ago, the "saftey ama" to leeward is new, and there is still a lot of room for style (like cars!).

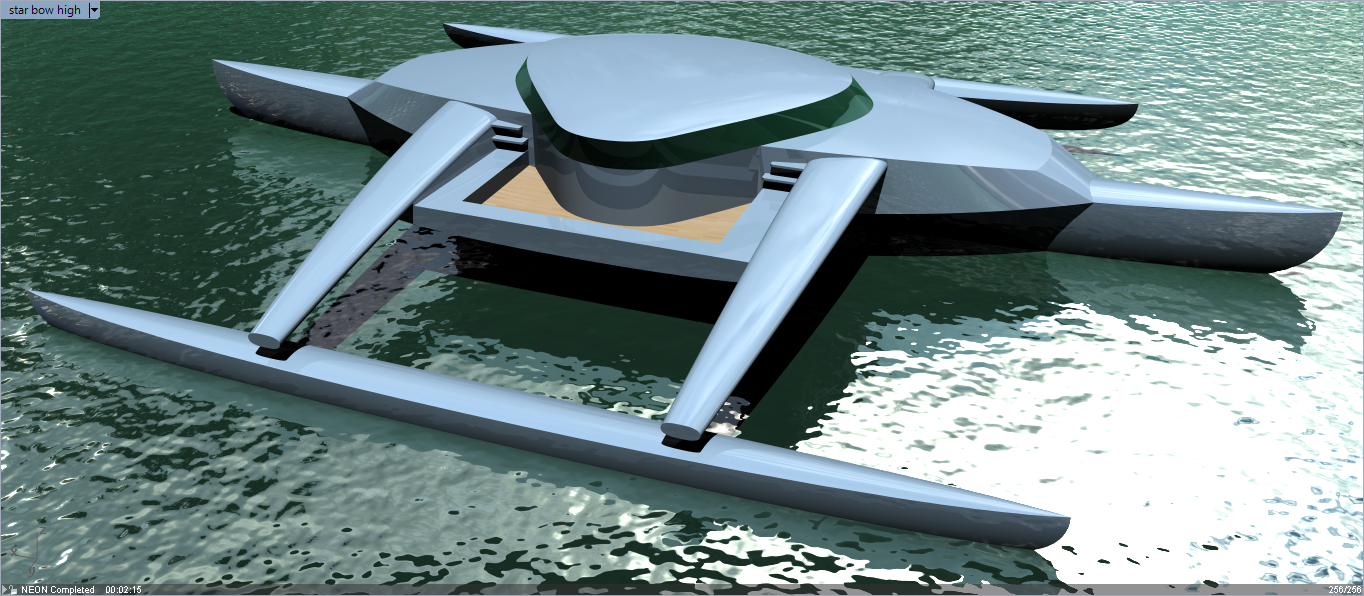

This safety ama is one foot off the water at rest, provides 4,300 displacement at 10 degrees heel and gets max. displacement (12,500 lbs.) at 15 degrees heel angle.
